What Is a Shaduf?
A shaduf is a hand-operated water lift: an upright frame, a long pole pivoted across it like a seesaw, a bucket on a rope at one end, and a heavy counterweight of clay or stone at the other. You pull the bucket down into the water, and the counterweight does most of the work of raising it back up.
That is the whole machine. No gears, no seals, nothing to buy. And Britannica notes it is still in use in Egypt and India today, where it goes by the names shadoof, denkli and paecottah.
It is worth understanding for two reasons. If a homework question sent you here, the mechanism below is the answer. If you garden, the shaduf demonstrates a principle that still applies to your rain barrel: moving water is mostly a problem of leverage and elevation, not horsepower.
What this guide covers:
- How the lever and counterweight actually work, part by part
- The measured performance figures, and where published numbers disagree
- Why the shaduf was a supporting tool, not the main irrigation system
- What the saqia and Archimedes screw did better, and at what cost
- The four principles that transfer straight into a modern garden
Key Takeaway
The shaduf did not lift Egypt's water. The Nile flood did. The shaduf handled the margins: the high ground, the garden plots, and the dry months after the flood receded. That distinction is the whole design lesson.
How Does a Shaduf Work?

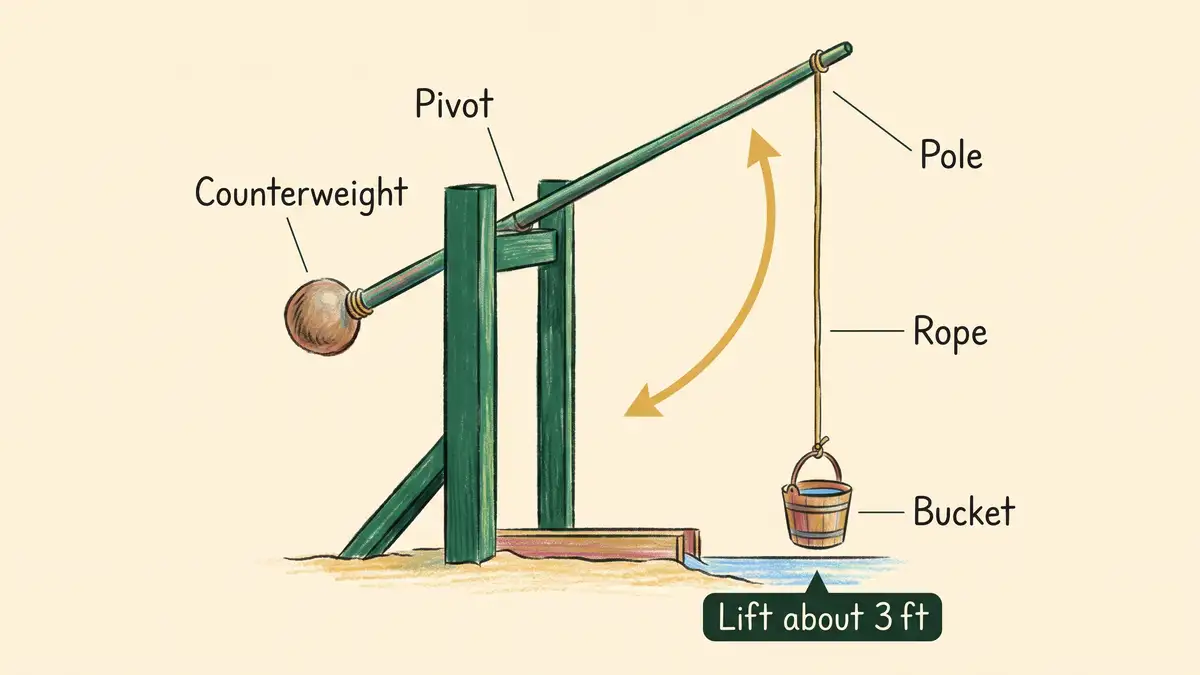

The pivot is deliberately off-centre. The pole is balanced roughly one-fifth of its length from the counterweight end, so the long arm sweeps a much bigger arc than the short one. That geometry lets the bucket drop well below the operator's feet and rise well above their head from a single fixed frame.
The operator pulls the bucket down
Body weight on the rope brings the long arm down to the water. This is the only part of the cycle that costs real effort, and gravity plus body weight cover most of it.
The bucket fills and the counterweight takes over
The counterweight is sized so that once the bucket is full, the return lift is nearly automatic. The operator guides the arm rather than hauling it. That is the whole of the design.
The full bucket is swung and tipped into a channel
At the top of the arc, water is tipped or released into a mud-walled channel that carries it away by gravity. Buckets were often skin or reed lined with bitumen to cut leakage.
Stage several shadufs for a higher lift
Where fields sat well above the river, farmers built a second shaduf above the first, lifting from an intermediate trough. Two or three modest lifts rather than one heroic one.
Why This Works: Stacking Small Lifts
Permaculture design favours many small, slow interventions over one large one, because small systems fail gracefully. A three-stage shaduf is exactly that: if the top stage breaks, the lower two still water the lower fields. A single high-head pump has no such fallback, which is the same reason a chain of small swales outperforms one big ditch. Our guide to swales and berms covers the earthwork version of the same idea.
How much water does it actually move? Here the published numbers diverge badly, and it is worth being honest about that. A peer-reviewed field study of shaduf performance published by the American Society of Agricultural Engineers measured about 37 litres per minute (roughly 10 gallons a minute) at a 4 ft lift, with mechanical efficiency around 60 percent.
Popular engineering summaries quote far higher figures, sometimes 20 cubic metres an hour, which is close to ten times the measured rate. Treat the measured study as the honest number and the rest as optimistic. Roughly 10 gallons a minute, worked in two-hour stints morning and evening, is somewhere near 2,400 gallons a day from one person and one pole.
Get Our Free Companion Planting Chart
Join 10,000+ gardeners getting weekly tips on what to plant together, soil health, and permaculture techniques.
Send Me the ChartHow Did Ancient Egypt Really Irrigate?
Not with shadufs. Egypt ran on basin irrigation, and the shaduf filled the gaps that basins could not reach.
Farmers divided the floodplain into large basins bounded by low earth banks. When the Nile rose each summer, water was let in through cut channels and held for about a month. Silt settled onto the fields. The water was then drained off, leaving soil that was moist, freshly fertilised and ready to sow.
That is a flood-and-drain irrigation system operating at national scale, and it renewed its own fertility. Egyptian agriculture ran for thousands of years on annual silt deposition rather than imported fertility, which is a claim very few farming systems in history can make.
| Season | Egyptian Name | Roughly | What Happened |
| Inundation | Akhet | Jun-Oct | Flood fills the basins; fields under water, no cultivation |
| Growth | Peret | Oct-Feb | Water drained, seed sown into wet silt, crops grow on stored moisture |
| Harvest | Shemu | Feb-Jun | Harvest, then the dry season when shadufs kept gardens alive |
Sources: Water supply of ancient Egyptian settlements: the role of the state (peer-reviewed, 2016), FAO, Irrigation in the Near East Region in Figures: Egypt
Flood height was measured at nilometers cut into the riverbank at Aswan, Elephantine and elsewhere. A good flood meant a full harvest and a manageable tax assessment. A low flood meant famine. The whole civilisation was reading a gauge and planning around a seasonal pulse it could not control.
The shaduf came into its own in the months when the basins were dry. It watered the vegetable plots, orchards and ornamental gardens that sat above flood level and needed year-round water. New Kingdom tomb paintings show exactly this: the Metropolitan Museum holds a facsimile of the garden scene from the tomb of Ipuy at Deir el-Medina, painted in the reign of Ramesses II around 1290 to 1224 BCE, showing a household garden being watered by hand.
What Replaced the Shaduf?
Two devices, both trading simplicity for output.
The saqia is a vertical wheel hung with clay pots, geared to a beam turned by an ox walking in a circle. It lifts continuously rather than in cycles, reaches higher, and does not tire the way a person does. The cost is an animal to feed, a lined well, gearing to maintain, and a much larger outlay.
The Archimedes screw, known in Egypt as the tanbur, is a helical screw in an inclined cylinder. Turned by hand or foot, it moves large volumes over short lifts with almost no lost motion. Modern industrial screws in drainage installations handle hundreds of litres per second, though the hand-turned garden version is nowhere near that.
The shaduf never fully disappeared, which is the interesting part. When the ethnographer Winifred Blackman worked among farmers in Upper Egypt in the 1920s, shadufs were still ordinary working equipment. She bought a model from a village carpenter in Shantur in 1927, and the British Museum still holds it, catalogued as Af1981,14.109, measuring 44.5 by 33 cm.
A three-thousand-year-old design a village carpenter could still build from scrap in 1927, with no supply chain, is the definition of appropriate technology. It lost ground to diesel and electric pumps, not to a better lever.
What Changed After the Dams
The Aswan High Dam, completed in 1970, ended the annual flood. Basin irrigation gave way to year-round canal irrigation, which allowed multiple crops per year but stopped the silt. Egyptian farmland that had renewed itself for millennia now depends on imported fertiliser, and reduced flushing has driven salt accumulation in delta soils. It is the clearest available case study in what happens when you take the pulse out of a pulsed system.
What Can a Modern Gardener Actually Use?
Four principles, all of which survive the translation.
Elevation beats pressure. A rain barrel on a 3 ft stand delivers about 1.3 psi at the outlet, which is enough to run low-pressure drip line across a bed without a pump. Every foot you raise the tank is free head forever. This is the single highest-return change most gardeners can make to a rainwater system, and it pairs naturally with a properly sized drip layout.
Counterweight the repetitive lift. If you move water, compost or anything heavy along the same path daily, a counterweighted arm turns a lift into a guided swing. The principle is identical to a well sweep, and it is why the design outlived every empire that used it.
Flood and drain, then leave it alone. Basin irrigation soaked deeply, then drained and let the surface dry. Deep infrequent watering drives roots down; daily surface sprinkling keeps them shallow. Modern deep-watering advice is basin irrigation at 1/1000th scale.
Store the pulse. Egypt's whole agricultural genius was catching a seasonal surge and spending it slowly. In a US garden that surge is winter and spring rain, and the storage is tanks, swales, mulch and organic matter in the soil. Our guides to water-wise desert design and the desert food forest cover the dryland versions.
Key Takeaway
The transferable lesson is not the machine, it is the hierarchy. Work with the seasonal pulse first, use gravity second, use a mechanical lift third, and reach for a pump last. Egyptian farmers arrived at that order because they had no other choice. Most gardens would run better if we followed it by choice.
Frequently Asked Questions
What is a shaduf used for?
Lifting water from a river, canal or well up to a field or garden that sits above the water level. In ancient Egypt it was used mainly on garden plots, orchards and high ground that the annual Nile flood did not reach, and during the dry months after the basins had drained. It was a supplementary tool rather than the main irrigation system, and it is still used for small-scale irrigation in parts of Egypt, Sudan and India.
How does a shaduf work?
A long pole is pivoted on an upright frame, off-centre so that about one-fifth of its length sits on the counterweight side. A bucket hangs on a rope from the long end and a lump of clay or stone hangs on the short end. The operator pulls the bucket down to the water using body weight, and once it fills, the counterweight raises it almost by itself. The operator then swings the full bucket over and tips it into a channel. The counterweight is what makes it efficient: it stores the energy of the downstroke and returns it on the lift.
Who invented the shaduf?
No single inventor is recorded. Lever-and-counterweight water lifts appear independently in Mesopotamia and Egypt in antiquity, and comparable devices are documented in India and Sudan. Egyptian tomb art places shadufs in everyday agricultural use by the New Kingdom, and they were familiar tools across the region by the first millennium BCE. Precise dating from tomb scenes is difficult because the earliest depictions cannot always be securely identified, so most careful sources describe the origin as ancient and contested rather than fixed to one dynasty.
How much water can a shaduf lift?
A measured field study reported by the American Society of Agricultural Engineers found roughly 37 litres per minute, about 10 gallons a minute, at a lift of around 4 ft, with mechanical efficiency near 60 percent. Higher figures circulate widely, some of them close to ten times that, but they are not backed by controlled measurement. A realistic working day of two shifts, morning and evening, puts one operator somewhere near 2,000 to 2,500 gallons, enough to irrigate a small intensive plot but not a field.
Is the shaduf still used today?
Yes, in reduced numbers. Britannica records it as still in use in Egypt and India, and ethnographic collections document it as ordinary working equipment in Upper Egypt into the twentieth century. Diesel and electric pumps have replaced it wherever fuel and power are reliable and affordable, but where they are not, a device built from local timber, rope and a stone still works. That durability is the reason appropriate-technology projects keep returning to counterweighted lifts. Our overview of how different cultures grow food covers more examples of the same pattern, including the drip-irrigation traditions of the same region.
