# Food Forest Design: Mapping Your Edible Landscape

## How Do You Design a Food Forest That Actually Produces?

You want to grow food that takes care of itself — fruit trees, berry bushes, herbs, and ground covers all working together without the constant replanting and weeding of annual beds. But staring at an empty patch of yard, the question hits: **where do you actually start?** [what to expect by year 5](https://growperma.com/blog/food-forest-in-year-5-mid-term-milestones) [a food forest bloom calendar](https://growperma.com/blog/pollinator-plants-for-food-forests-bloom-calendar)

A food forest isn't just "plant some fruit trees and hope for the best." It's a designed ecosystem where **canopy trees, understory shrubs, herbs, and ground covers** stack vertically to fill every niche — the same way a natural forest does, except every layer produces something you can eat. According to [Martin Crawford's 20-year data](https://www.agroforestry.co.uk/product/creating-a-forest-garden-2/) from his Devon forest garden, a well-designed half-acre food forest can yield **1,050–2,600 lbs (477–1,182 kg) of food annually** by year seven — comparable to a commercial orchard but with 60–80% lower external inputs. The design phase is where those results are won or lost.

Whether you're working with a **200 sq ft (18.6 m²) urban backyard** or a quarter-acre suburban lot, the mapping process follows the same principles. This guide walks you through the practical steps of food forest design — from reading your site to spacing your first guild — so your planting day starts with confidence, not guesswork. If you're brand new to the concept, our [complete food forest guide](https://growperma.com/blog/food-forest-guide-design-plant-and-grow-an-edible-ecosystem/) covers the fundamentals before you dive into design.

30–40 ft

Canopy Tree Spacing

Centre-to-centre, temperate zones

200 sq ft

Minimum Viable Size

Micro food forest threshold

7–10 yrs

Full Productivity

Canopy maturity timeline

5–8%

Target Organic Matter

vs 3–4% for annual beds

**What you'll learn in this guide:**

- How to map sun, water, wind, and soil — the four vectors that decide where every tree goes
- Spacing standards for all [seven food forest layers](https://growperma.com/blog/7-layers-of-a-food-forest-understanding-vertical-structure/), from canopy to ground cover
- The apple guild model — a proven companion planting template you can adapt to any fruit tree
- A realistic yield timeline so you know what to expect in years 1–3, 3–7, and beyond

Key Takeaway

Food forest design is won in the mapping phase, not the planting phase. A **base map with sector analysis** — tracking sun paths, water flow, wind patterns, and soil depth — prevents the most common failure: overcrowding canopy trees that need removal at year five. Spend a full season observing before you plant a single tree.

![Pencil-crayon illustration of a gardener sketching a food forest base map with compass, measuring tape, and graph paper on a sunny garden table](https://growperma.com/hubfs/blog/images/gp-0035-body1-base-map-sketching-20260413-20260413-050603.webp)

## What Should Your Food Forest Base Map Include?

![Pencil-crayon close-up of hands testing soil layers with a probe showing clay silt and loam horizons in a food forest site](https://growperma.com/hubfs/blog/images/gp-0035-float-left-soil-testing-20260413-20260413-050611.webp)

Your base map is the foundation document every planting decision builds from. Before you order a single tree, you need a **scaled drawing** of your property showing structures, existing vegetation, contour lines, and utility locations. Professional permaculture designers work at 1:100 or 1:200 scale — but graph paper and a measuring tape work fine for residential sites.

The real power comes from **sector analysis** — overlaying four directional vectors onto your base map. [Penn State Extension](https://extension.psu.edu/fruit-production-for-the-home-gardener) notes that south-facing slopes receive **30–50% more annual solar radiation** than north-facing slopes, translating to 2–4 extra weeks of growing season. That data point alone could shift your entire canopy placement.

Track these four sectors across at least one full season before finalising your design:

| Sector | What to Map | Design Response |
| --- | --- | --- |
| Sun | Hours by zone (canopy needs 6–8 hrs, understory 3–5 hrs) | Place canopy trees on south-facing areas; shade-tolerant species on north edges |
| Water | Surface flow, drainage rate (optimal: 1–2 in/hr), groundwater depth | Design swales to capture runoff; place water-loving shrubs in low zones |
| Wind | Prevailing direction, seasonal speed, frost drainage paths | Windbreak rows on exposed sides; dwarf cultivars in high-wind zones |
| Soil | NPK at multiple depths (0–6 in, 6–12 in, 12–24 in), pH, organic matter % | Amend before planting; match species to existing pH and drainage |

Sources:

One critical difference from annual gardening: food forest [soil testing](https://growperma.com/blog/soil-health-guide-how-to-build-living-soil-for-a-thriving-garden/) requires a **deep profile (12–24 inches / 30–60 cm)**, not just surface NPK. Fruit tree roots access lower horizons, so you need phosphorus, potassium, and mycorrhizal fungi data at depth. [UC Davis Soil Health research](https://soilhealth.ucdavis.edu/soil-challenges/low-organic-matter) recommends targeting 5–8% organic matter in food forest soils — significantly higher than the 3–4% standard for annual vegetable beds.

Common Mistake to Avoid

Overcrowding canopy trees is the number-one food forest design failure. It's tempting to plant densely when saplings are small, but a standard apple tree needs **25–30 feet (7.6–9 m)** of spacing. Trees planted at 15-foot centres will need removal at year five when canopies close — wasting years of growth. If space is tight, choose dwarf rootstocks (M.27) at 12–15 foot (3.6–4.5 m) spacing instead.

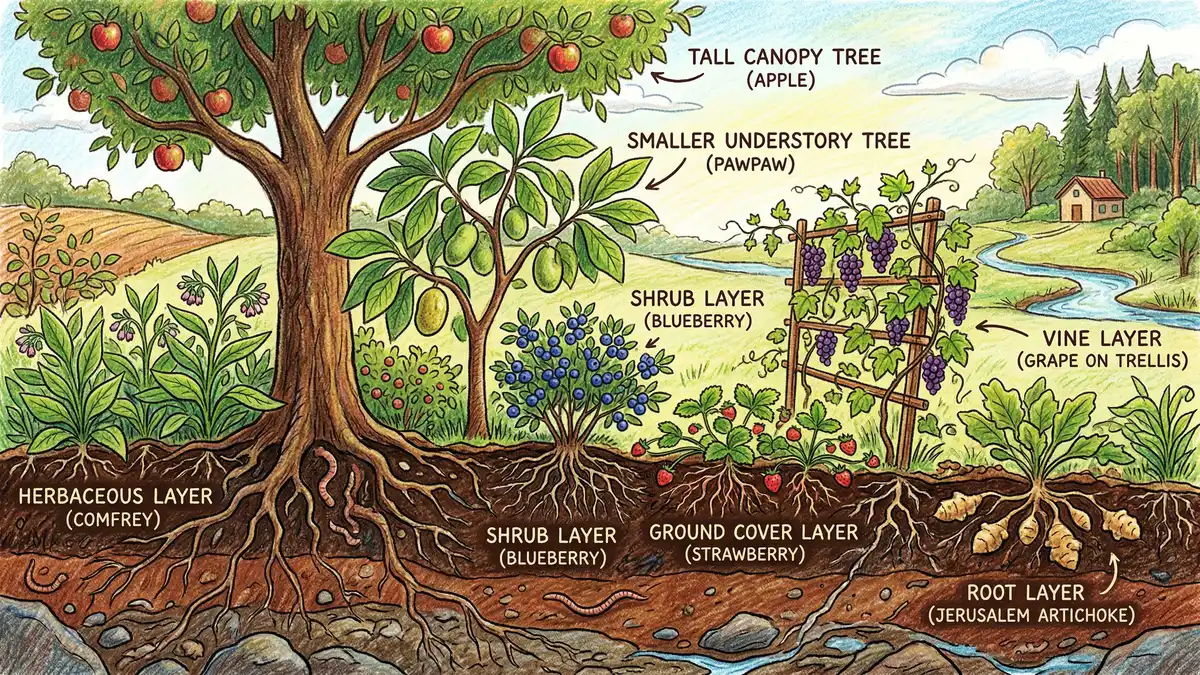

![Pencil-crayon cross-section illustration of seven food forest layers showing canopy understory shrub herbaceous ground cover vine and root layers with spacing measurements](https://growperma.com/hubfs/blog/images/gp-0035-body2-seven-layers-cross-section-20260413-20260413-050606.webp)

## How Do You Space Plants Across All Seven Layers?

Each layer in a food forest has specific spacing and light requirements. Getting these right at planting time means your design matures into a productive system rather than a tangled mess. Here are the professional standards for temperate food forests (USDA zones 5–9):

| Layer | Example Species | Spacing | Min. Sun |
| --- | --- | --- | --- |
| Canopy | Apple, pear, cherry, walnut | 30–40 ft (9–12 m) | 6–8 hours |
| Understory | Serviceberry, pawpaw, filbert | 18–25 ft (5.5–7.6 m) | 3–5 hours |
| Shrub | Currants, gooseberries, elderberry | 8–12 ft (2.4–3.6 m) | 2–4 hours |
| Herbaceous | Comfrey, lovage, sorrel | 3–4 ft (0.9–1.2 m) | 1–3 hours |
| Ground cover | Creeping thyme, white clover, violets | 1–2 ft (0.3–0.6 m) | 0–2 hours |
| Vine | Grape, hardy kiwi, hops | 10–15 ft (3–4.5 m) | 5–8 hours |
| Root | Comfrey, chicory, burdock | 3–5 ft (0.9–1.5 m) | Varies |

Sources:

Dense ground cover planting — 4–9 plants per square metre — can suppress weeds by **70–85% by year three**, eliminating most of the maintenance burden that discourages new food foresters. Vines should be trained on south-facing trellises rather than climbing canopy trees directly, since they compete for water and can shade the canopy unnecessarily. For a deeper look at how these layers interact, see our guide to the [seven layers of a food forest](https://growperma.com/blog/7-layers-of-a-food-forest-understanding-vertical-structure/).

## What Is a Food Forest Guild and How Does It Work?

A guild is a group of plants intentionally arranged around a central productive tree to **support its growth, reduce pests, and maximise yield** — all without synthetic inputs. The most documented example is the **apple guild**, which arranges 6–8 companion species in rings around a semi-dwarf apple tree. Companion planting principles — similar to those in our [companion planting chart](https://growperma.com/blog/companion-planting-chart-the-complete-guide-for-every-vegetable/) — apply here at tree scale.

![Pencil-crayon illustration of hands harvesting ripe apples and berries from a mature food forest guild with herbs growing below](https://growperma.com/hubfs/blog/images/gp-0035-float-right-mature-harvest-20260413-20260413-050616.webp)

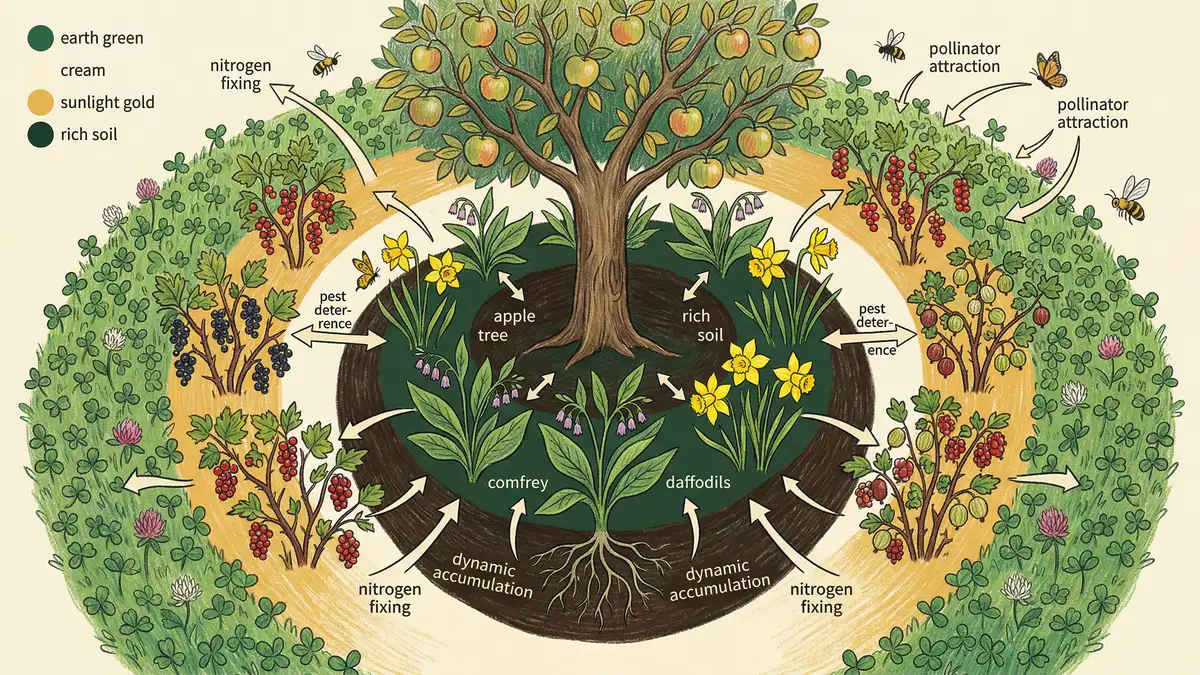

Here's how an apple guild works in practice: nitrogen-fixing shrubs like Siberian pea shrub go **8–10 feet (2.4–3 m)** from the trunk on the north side. Comfrey clusters at 6–8 feet mine potassium from deep soil. Yarrow and dill at 4–6 feet attract beneficial insects. Chives near the drip line repel aphids. White clover covers the ground, fixing nitrogen and suppressing weeds.

Data from [Oregon State University's demonstration orchards](https://workspace.oregonstate.edu/course/permaculture-food-forests-online-course) shows guilded apple plots require **40–50% fewer pest management interventions** than monoculture rows. Soil organic matter in guild zones increases 0.5–1% annually over the first seven years — compared to just 0–0.2% under bare turf.

![Pencil-crayon infographic diagram of an apple guild layout showing concentric rings of companion plants with spacing measurements and plant functions labeled in earth green and gold](https://growperma.com/hubfs/blog/images/gp-0035-infographic-apple-guild-diagram-20260413-20260413-050608.webp)

Why This Works: Stacking Functions

In [permaculture design](https://growperma.com/blog/what-is-permaculture-a-practical-guide-for-gardeners/), every element should serve multiple purposes — a principle called "stacking functions." Your comfrey isn't just a pretty herb: it mines potassium from 3–4 feet (0.9–1.2 m) deep, produces mulch material four to six times per year, attracts pollinators, and breaks compacted subsoil. One plant, five jobs. That's why a guild outperforms a monoculture row — every square foot is doing multiple things simultaneously.

## What Can You Expect From Your Food Forest Over Time?

Food forests are a long game, and realistic expectations prevent disappointment. The [Beacon Food Forest](https://www.beaconfoodforest.org/about-us) in Seattle — the largest [public food forest](https://growperma.com/blog/community-food-forest-how-to-start-and-manage-one) in the United States at 7 acres — has documented four distinct phases across its development since 2012.

For a half-acre (0.2 hectare) residential food forest, here's what Crawford's data and permaculture case studies show:

1

Pioneer Phase (Years 0–3): 80–160 lbs fresh food

Plant permanent canopy trees, fast-growing nitrogen fixers, berry shrubs, and dense herbaceous ground cover. Most food comes from herbs and early berries. Budget **$500–$2,000** for plants and soil amendments; expect **40–80 hours of labour** in year one.

2

Establishment Phase (Years 3–7): 550–1,200 lbs annually

Canopy trees begin producing. Thin 20–30% of pioneer species as canopy closes. Berry bushes hit peak output. Labour drops to **20–40 hours/year** — mostly pruning and selective harvest.

3

Productive Maturity (Years 7–15): 1,050–2,600 lbs annually

Full canopy yield. System largely self-regulates pest and disease pressure. Maintenance drops to **15–30 hours/year** of pruning. Soil organic matter stabilises at target levels.

4

Mature Ecosystem (Year 15+): 1,450–2,350 lbs annually

Minimal external inputs needed. Biodiversity stabilises at 20–50 plant species. Focus shifts to renewal pruning and sequential replacement of aging berry shrubs. The food forest now **gives more than it takes**.

Key Takeaway

A 200 sq ft (18.6 m²) micro food forest with a single dwarf apple, two berry bushes, and dense herbs can produce **150–250 lbs of food annually at maturity** — roughly 0.75–1.25 lbs per square foot. That's comparable efficiency to a large-scale food forest. You don't need acreage to start. For step-by-step planting guidance, see our [beginner's guide to starting a food forest](https://growperma.com/blog/how-to-start-a-food-forest-step-by-step-for-beginners/).

## Frequently Asked Questions

### How much space do I need for a food forest?

You can create a viable micro food forest in as little as **200 square feet (18.6 m²)** — enough for one dwarf fruit tree, two to three berry shrubs, perennial herbs, and ground cover. A quarter-acre (0.1 hectare) enables full guild diversity with multiple canopy trees. The design principles are identical at any scale; you simply compress or expand the number of layers and species. Even a small urban plot can yield 150–250 lbs of food per year at maturity using vertical stacking.

### How long before a food forest produces food?

You'll harvest perennial herbs and greens in **year one**, berry crops by **year two to three**, and significant fruit tree yields by **year five to seven**. Full productivity — where the system is largely self-maintaining — arrives around year seven to ten for most temperate food forests. Planning fast-producing pioneer species alongside slower canopy trees keeps harvests coming from day one while the long-term structure matures.

### Do I need to test my soil differently for a food forest?

Yes. Unlike [annual vegetable gardens](https://growperma.com/blog/food-forest-vs-vegetable-garden-comparison-for-beginners) where surface NPK (0–6 inches / 0–15 cm) is sufficient, food forests need a **deep soil profile test down to 24 inches (60 cm)**. Fruit tree roots access lower horizons, so phosphorus, potassium, and pH data at multiple depths matters. University extension labs now offer mycorrhizal fungi counts — critical for food forests that depend on fungal networks for nutrient cycling. Expect to pay $80–$180 for a full profile through services like [Penn State Extension](https://extension.psu.edu/fruit-production-for-the-home-gardener).

### What's the most common food forest design mistake?

Overcrowding canopy trees. Saplings look small at planting, and the temptation is to pack them in — but a standard apple tree needs **25–30 feet (7.6–9 m)** of space at maturity. Trees planted too closely require removal at year five to seven when canopies close, wasting years of growth. The fix is simple: use dwarf rootstocks in [small spaces](https://growperma.com/blog/permaculture-for-small-spaces-design-principles-for-urban-gardens) and resist filling gaps that the food forest needs for light penetration to lower layers.

### Can I add a food forest to my existing garden?

Absolutely. Many successful food forests begin as an expansion of existing [composting](https://growperma.com/blog/composting-for-beginners-the-complete-guide/) and gardening areas. Start with one [canopy tree](https://growperma.com/blog/food-forest-canopy-trees-choosing-your-overstory) and build a guild around it, then expand outward over several seasons. The key is placing your first tree where it won't shade existing annual beds (typically on the north side of your garden in the Northern Hemisphere). Each year, add another layer or extend the guild footprint as you learn how your site responds.
